IRHLUB740Z4 Datasheet - International Rectifier

IRHLUB740Z4 (IRHLUB7x0Z4) POWER MOSFET

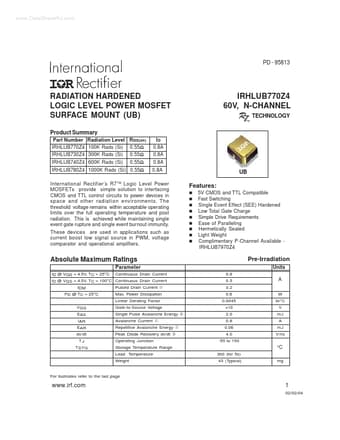

www.DataSheet4U.com PD - 95813 RADIATION HARDENED LOGIC LEVEL POWER MOSFET SURFACE MOUNT (UB) Product Summary Part Number Radiation Level RDS(on) IRHLUB770Z4 100K Rads (Si) 0.55Ω IRHLUB730Z4 300K Rads (Si) 0.55Ω IRHLUB740Z4 600K Rads (Si) 0.55Ω IRHLUB780Z4 1000K Rads (Si) 0.55Ω ID 0.8A 0.8A 0.8A 0.8A IRHLUB770Z4 60V, N-CHANNEL c TECHNOLOGY UB International Rectifier’s R7 TM Logic Level Power MOSFETs provide simple solution to interfacing CMOS and TTL control circuits to power devices in sp.

IRHLUB740Z4 Features

* n n n n n n n n n 5V CMOS and TTL Compatible Fast Switching Single Event Effect (SEE) Hardened Low Total Gate Charge Simple Drive Requirements Ease of Paralleling Hermetically Sealed Light Weight Complimentary P-Channel Available IRHLUB7970Z4 Absolute Maximum Ratings Parameter ID @ VGS = 4.5V, TC

IRHLUB740Z4 Datasheet (161.09 KB)
