IRHLUB7970Z4, IRHLUB7930Z4 - Power MOSFET

Name: IRHLUB7970Z4
SKU: IRHLUB7970Z4-598510

International Rectifier

📥 Download Datasheet

IRHLUB7970Z4 Datasheet Preview — This datasheet PDF includes multiple part numbers: IRHLUB7970Z4, IRHLUB7930Z4. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	IRHLUB7970Z4, IRHLUB7930Z4
Manufacturer	International Rectifier
File Size	810.07 KB
Description	Power MOSFET
Datasheet	IRHLUB7930Z4_InternationalRectifier.pdf
Note	This datasheet PDF includes multiple part numbers: IRHLUB7970Z4, IRHLUB7930Z4. Please refer to the document for exact specifications by model.

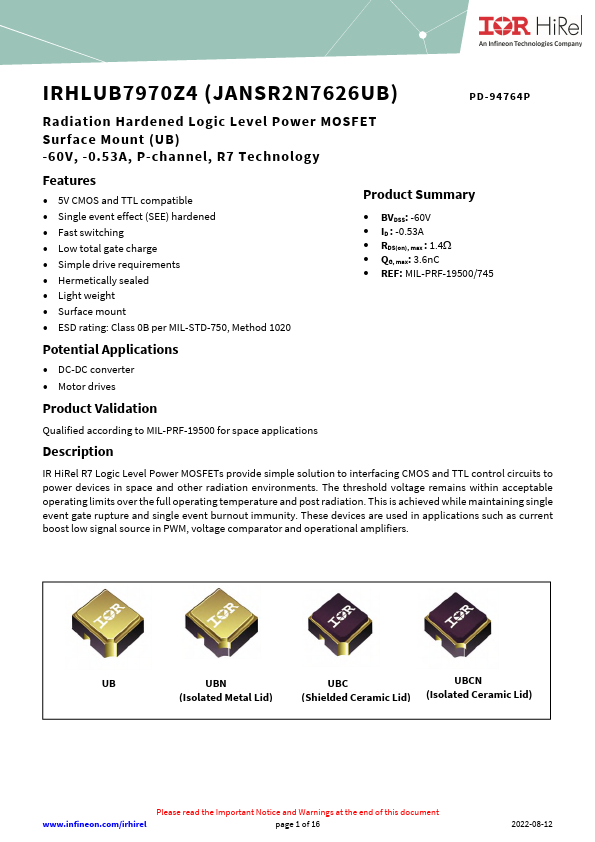

IRHLUB7970Z4 Product details

Description

IR HiRel R7 Logic Level Power MOSFETs provide simple solution to interfacing CMOS and TTL control circuits to power devices in space and other radiation environments.

Features

5V CMOS and TTL compatible.
Single event effect (SEE) hardened.
Fast switching.
Low total gate charge.
Simple drive requirements.
Hermetically sealed.
Light weight.
Surface mount.
ESD rating: Class 0B per MIL-STD-750, Method 1020 Product Summary.
BVDSS: -60V.
ID : -0.53A.
RDS(on), max : 1.4.
QG, max: 3.6nC.
REF: MIL-PRF-19500/745 Potential.
