IRHMS57160 Datasheet - International Rectifier

IRHMS57160 RADIATION HARDENED POWER MOSFET

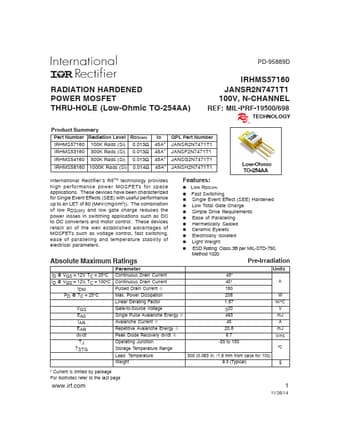

PD-95889D IRHMS57160 RADIATION HARDENED JANSR2N7471T1 POWER MOSFET 100V, N-CHANNEL THRU-HOLE (Low-Ohmic TO-254AA) Product Summary REF: MIL-PRF-19500/698 5 TECHNOLOGY Part Number Radiation Level RDS(on) ID QPL Part Number IRHMS57160 100K Rads (Si) 0.013Ω 45A JANSR2N7471T1 IRHMS53160 300K Rads (Si) 0.013Ω 45A JANSF2N7471T1 IRHMS54160 500K Rads (Si) 0.013Ω 45A JANSG2N7471T1 IRHMS58160 1000K Rads (Si) 0.014Ω 45A JANSH2N7471T1 Low-Ohmic TO-254AA International Recti.

IRHMS57160 Features

* n Low RDS(on) n Fast Switching n Single Event Effect (SEE) Hardened n Low Total Gate Charge n Simple Drive Requirements n Ease of Paralleling n Hermetically Sealed n Ceramic Eyelets n Electrically Isolated n Light Weight n ESD Rating: Class 3B per MIL-STD-750, Method 1020 Pre-Irradiation ID @ VGS

IRHMS57160 Datasheet (163.99 KB)
