IRHSLNA58Z60, IRHSLNA57Z60 - RAD-HARD SYNCHRONOUS RECTIFIER

Name: IRHSLNA58Z60
SKU: IRHSLNA58Z60-685803

International Rectifier

📥 Download Datasheet

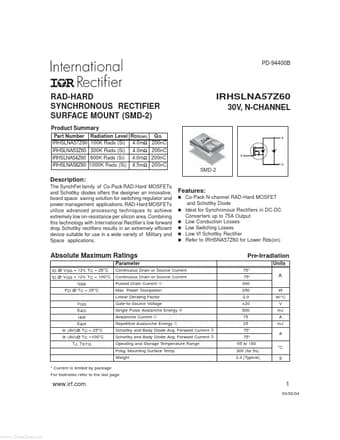

IRHSLNA58Z60 Datasheet Preview — This datasheet PDF includes multiple part numbers: IRHSLNA58Z60, IRHSLNA57Z60. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	IRHSLNA58Z60, IRHSLNA57Z60
Manufacturer	International Rectifier
File Size	147.76 KB
Description	RAD-HARD SYNCHRONOUS RECTIFIER
Datasheet	IRHSLNA57Z60_InternationalRectifier.pdf
Note	This datasheet PDF includes multiple part numbers: IRHSLNA58Z60, IRHSLNA57Z60. Please refer to the document for exact specifications by model.

IRHSLNA58Z60 Product details

Description

The SynchFet family of Co-Pack RAD-Hard MOSFETs and Schottky diodes offers the designer an innovative, board space saving solution for switching regulator and power management applications.

Features

n Co-Pack N-channel RAD-Hard MOSFET and Schottky Diode n Ideal for Synchronous Rectifiers in DC-DC n n n n Converters up to 75A Output Low Conduction Losses Low Switching Losses Low Vf Schottky Rectifier Refer to IRHSNA57Z60 for Lower Rds(on) Absolute Maximum Ratings Parameter ID @ VGS = 12V, TC = 25°C ID @ VGS = 12V, TC = 100°C IDM PD @ TC = 25°C VGS EAS IAR EAR IF (AV)@ TC = 25°C IF (AV)@ TC =100°C TJ, TSTG Continuous Drain or Source Current Continuous Drain or Source Current Pulsed Drain.
