- Part number
- IRL3103L
- Manufacturer
- International Rectifier
- File Size
- 125.19 KB
- Datasheet
- IRL3103L_InternationalRectifier.pdf
- Description
- Power MOSFET
IRL3103L Description

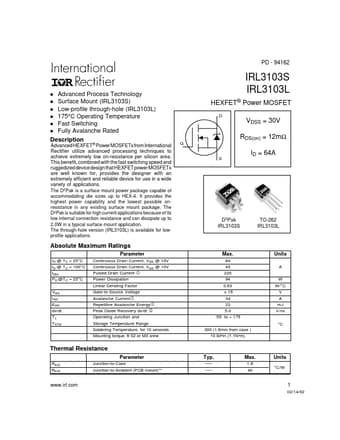

PD - 94162 Advanced Process Technology Surface Mount (IRL3103S) l Low-profile through-hole (IRL3103L) l 175°C Operating Temperature l Fast Switching .
l l
IRL3103S IRL3103L
HEXFET® Power MOSFET
D
VDSS = 30V RDS(on) = 12mΩ
Advanced HEXFET® Power MOSFETs from International Rectifier utilize advanced.
IRL3103L Features
* >
* VGS = 5.0V for Logic Level and 3V Drive Devices Fig 14. For N-channel HEXFET® power MOSFETs
www. irf. com
7
IRL3103S/IRL3103L
D2Pak Package Outline
1 0.54 (.415 ) 1 0.29 (.405 ) 1.4 0 (.055 ) M AX. -A2
4 .6 9 (.18 5) 4 .2 0 (.16 5)
-B1.3 2 (.05 2) 1.2 2 (.04 8)
10 .1 6 (.4 00 ) R E
IRL3103L Applications
* G S
ID = 64A
The D2Pak is a surface mount power package capable of accommodating die sizes up to HEX-4. It provides the highest power capability and the lowest possible onresistance in any existing surface mount package. The D2Pak is suitable for high current applications because of its low inte
