IRL3103LPBF

Power MOSFET

IRL3103LPBF Features

* 5% [ ISD ]

* VGS = 5.0V for Logic Level and 3V Drive Devices Fig 14. For N-channel HEXFET® power MOSFETs www.irf.com 7 IRL3103S/LPbF D2Pak Package Outline D2Pak Part Marking Information (Lead-Free) T H IS IS AN IR F 5 30S WIT H L OT COD E 80 24 AS S E MB L E D ON WW 02 , 2 000 I

IRL3103LPBF General Description

l IRL3103SPbF IRL3103LPbF HEXFET® Power MOSFET D VDSS = 30V RDS(on) = 12mΩ G S www.DataSheet4U.com Absolute Maximum Ratings ID @ TC = 25°C ID @ TC = 100°C IDM PD @TC = 25°C VGS IAR EAR dv/dt TJ TSTG The D2Pak is a surface mount power package capable of accommodating die sizes up to HEX-4. It p.

IRL3103LPBF Datasheet (674.38 KB)

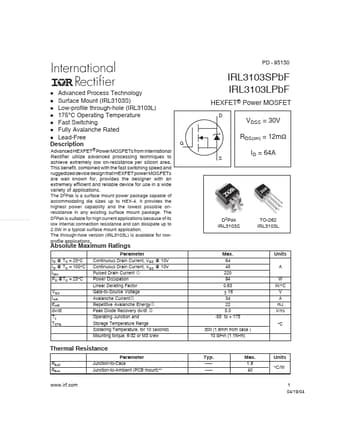

Preview of IRL3103LPBF PDF

Datasheet Details

Part number:

IRL3103LPBF

Manufacturer:

International Rectifier

File Size:

674.38 KB

Description:

Power mosfet.
PD - 95150 Advanced Process Technology l Surface Mount (IRL3103S) l Low-profile through-hole (IRL3103L) l 175°C Operating Temperature l Fast Switchin.
