IRLML0100, IRLML0100TRPBF Power MOSFET

International Rectifier

Description

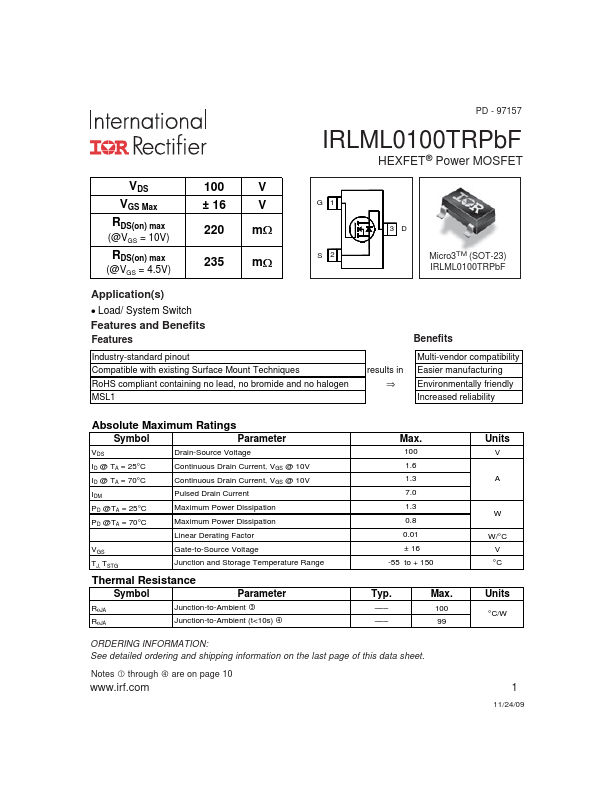

PD - 97157 IRLML0100TRPbF HEXFET® Power MOSFET VDS 100 V VGS Max ± 16 V G1 RDS(on) max (@VGS = 10V) 220 m: RDS(on) max 235 m: S2 (@VGS =.

📥 Download Datasheet

IRLML0100 Datasheet Preview — This datasheet PDF includes multiple part numbers: IRLML0100, IRLML0100TRPBF. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: IRLML0100, IRLML0100TRPBF
Manufacturer: International Rectifier
File Size: 183.12 KB
Datasheet: IRLML0100TRPBF_InternationalRectifier.pdf
Description: Power MOSFET
Note: This datasheet PDF includes multiple part numbers: IRLML0100, IRLML0100TRPBF.
Please refer to the document for exact specifications by model.

Features

* Features Industry-standard pinout Compatible with existing Surface Mount Techniques RoHS compliant containing no lead, no bromide and no halogen MSL1 Benefits results in ⇒ Multi-vendor compatibility Easier manufacturing Environmentally friendly Increased reliability Absolute Maximum Ratings Sym
