IRLML5203GPbF Datasheet - International Rectifier

IRLML5203GPbF, Power MOSFET

l Ultra Low On-Resistance l P-Channel MOSFET l Surface Mount l Available in Tape & Reel l Low Gate Charge l Lead-Free l Halogen-Free .
These P-channel MOSFETs from International Rectifier utilize advanced processing techniques to achieve the extremely low on-resistance per silicon are.

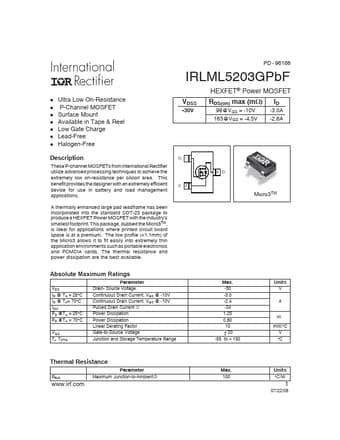

datasheet Preview Page 1 from Datasheet4u.com

IRLML5203GPbF-InternationalRectifier.pdf

IRLML5203GPbF Datasheet Preview — Preview of IRLML5203GPbF PDF

Datasheet Details

Part number:

IRLML5203GPbF

Manufacturer:

International Rectifier

File Size:

190.89 KB

Description:

Power MOSFET

Features

* lease refer to IR website at http://www. irf. com/package 8 www. irf. com IRLML5203GPbF Micro3™ Tape & Reel Information Dimensions are shown in millimeters (inches) 2.05 ( .080 ) 1.95 ( .077 ) TR 4.1 ( .161 ) 3.9 ( .154 ) 1.6 ( .062 ) 1.5 ( .060 ) 1.85 ( .072 ) 1.65 ( .065 ) 3.55 ( .139 ) 3.45 ( .

Applications

* A thermally enhanced large pad leadframe has been incorporated into the standard SOT-23 package to produce a HEXFET Power MOSFET with the industry's smallest footprint. This package, dubbed the Micro3TM, is ideal for applications where printed circuit board space is at a premium. The low profile (
