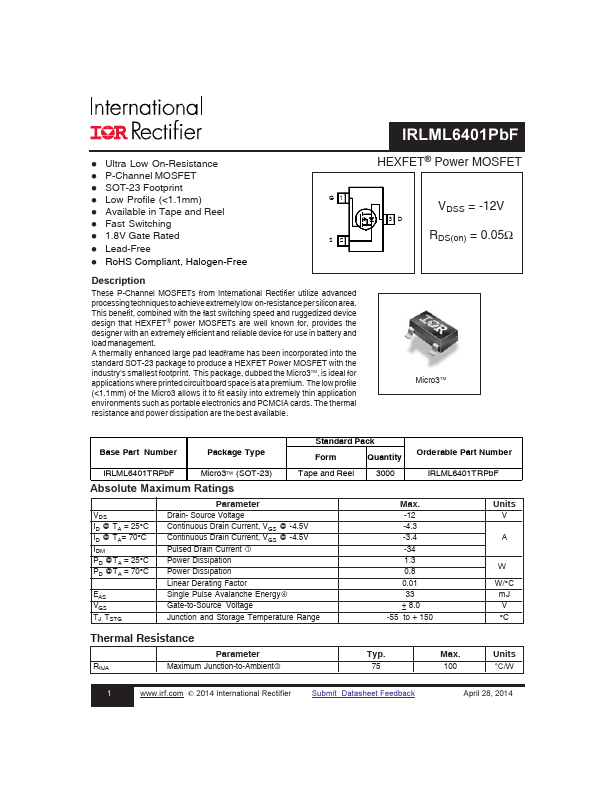

IRLML6401 Datasheet, mosfet equivalent, International Rectifier

IRLML6401 Features

• Mosfet devices produced before 02/26/2001 EXAMPLE: T HIS IS AN IRLML6302 WW = (1-26) IF PRECEDED BY LAS T DIGIT OF CALENDAR YEAR YEAR PART NUMBER 2001 2002 2003 1994 1995 1996 1997 1998 1999

PDF File Details

Part number:

IRLML6401

Manufacturer:

International Rectifier

File Size:

142.08kb

Download:

📄 Datasheet

Description:

Hexfet power mosfet. These P-Channel MOSFETs from International Rectifier utilize advanced processing techniques to achieve extremely low on-resistance pe

IRLML6401 Application

• Applications where printed circuit board space is at a premium. The low profile (<1.1mm) of the Micro3 allows it to fit easily into extremely thin a
