IRLMS1503PBF-1 Datasheet - International Rectifier

IRLMS1503PBF-1, Power MOSFET

VDS RDS(on) max (@VGS = 10V) RDS(on) max (@VGS = 4.5V) Qg (typical) ID (@TA = 25°C) 30 0.10 0.20 6.4 3.2 V Ω nC A .

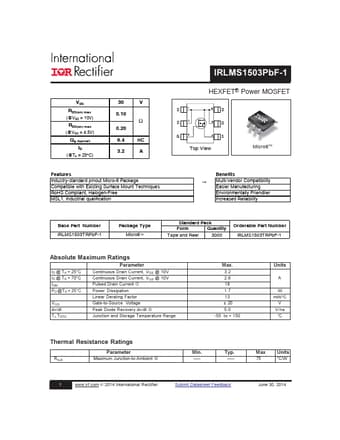

datasheet Preview Page 1 from Datasheet4u.com

IRLMS1503PBF-1-InternationalRectifier.pdf

IRLMS1503PBF-1 Datasheet Preview — Preview of IRLMS1503PBF-1 PDF

Datasheet Details

Part number:

IRLMS1503PBF-1

Manufacturer:

International Rectifier

File Size:

205.17 KB

Description:

Power MOSFET

Features

* Industry-standard pinout Micro-6 Package Compatible with Existing Surface Mount Techniques RoHS Compliant, Halogen-Free MSL1, Industrial qualification IRLMS1503PbF-1 HEXFET® Power MOSFET D1 A 6D D2 5D G3 4S Top View Micro6™ Benefits ⇒ Multi-Vendor Compatibility Easier Manufacturing Enviro
