IRLS3034-7PPBF 40V Single N-Channel HEXFET Power MOSFET

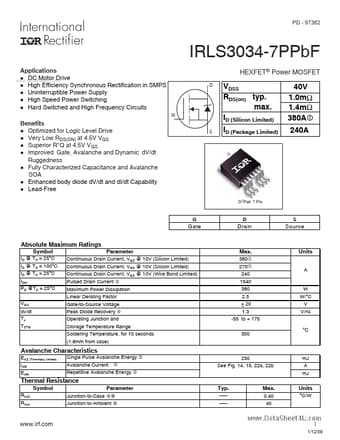

PD - 97362 IRLS3034-7PPbF Applications l DC Motor Drive www.datasheet4u.com l High Efficiency Synchronous Rectification in SMPS l Uninterruptible Power Supply l High Speed Power Switching l Hard Switched and High Frequency Circuits G HEXFET® Power MOSFET D Benefits l Optimized for Logic Level Drive l Very Low RDS(ON) at 4.5V VGS l Superior R Q at 4.5V VGS l Improved Gate, Avalanche and Dynamic dV/dt Ruggedness l Fully Characterized Capacitance and Avalanche SOA l Enhanced body diode dV/dt.

IRLS3034-7PPBF Features

* E-02 1.0E-01 Fig 14. Typical Avalanche Current vs.Pulsewidth 300 250 200 150 100 50 0 25 50 75 100 125 150 175 Starting T J , Junction Temperature (°C) TOP Single Pulse BOTTOM 1.0% Duty Cycle ID = 220A Notes on Repetitive Avalanche Curves , Figures 14, 15: (For further info, see AN-1005 at www.irf
