IRLS3036-7PPBF 60V Single N-Channel HEXFET Power MOSFET

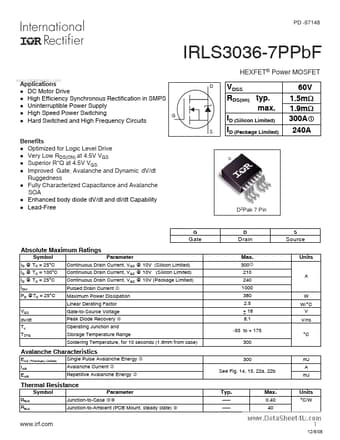

PD -97148 IRLS3036-7PPbF HEXFET® Power MOSFET www.datasheet4u.com Applications l DC Motor Drive l High Efficiency Synchronous Rectification in SMPS l Uninterruptible Power Supply l High Speed Power Switching G l Hard Switched and High Frequency Circuits Benefits l Optimized for Logic Level Drive l Very Low RDS(ON) at 4.5V VGS l Superior R Q at 4.5V VGS l Improved Gate, Avalanche and Dynamic dV/dt Ruggedness l Fully Characterized Capacitance and Avalanche SOA l Enhanced body diode dV/dt and.

IRLS3036-7PPBF Features

* 1.0E-03 1.0E-02 1.0E-01 tav (sec) Fig 14. Typical Avalanche Current vs.Pulsewidth 300 EAR , Avalanche Energy (mJ) 250 TOP Single Pulse BOTTOM 1% Duty Cycle ID = 180A 200 150 100 50 Notes on Repetitive Avalanche Curves , Figures 14, 15: (For further info, see AN-1005 at www.irf.com) 1. Aval
