IRLZ24NL

Power MOSFET

IRLZ24NL Features

* >

* dv/dt controlled by RG Driver same type as D.U.T. ISD controlled by Duty Factor "D" D.U.T. - Device Under Test + V DD et4U.com DataShee DataSheet4U.com Driver Gate Drive P.W. Period D= P.W. Period VGS=10V

* D.U.T. ISD Waveform Reverse Recovery Current Body Diode Forward

IRLZ24NL General Description

l HEXFET® Power MOSFET D VDSS = 55V RDS(on) = 0.06Ω G ID = 18A S Fifth Generation HEXFETs from International Rectifier utilize advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device desig.

IRLZ24NL Datasheet (372.89 KB)

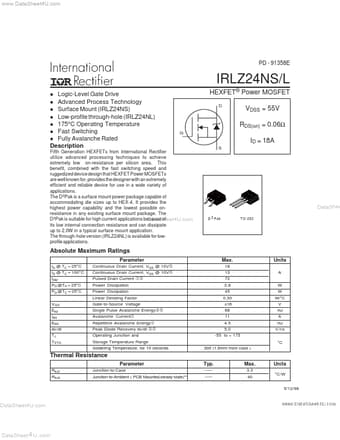

Preview of IRLZ24NL PDF

Datasheet Details

Part number:

IRLZ24NL

Manufacturer:

International Rectifier

File Size:

372.89 KB

Description:

Power mosfet.
www.DataSheet4U.com PD - 91358E IRLZ24NS/L Logic-Level Gate Drive l Advanced Process Technology l Surface Mount (IRLZ24NS) l Low-profile through-hol.
