IRLZ14S - Power MOSFET

IRLZ14S Description

www.vishay.com IRLZ14S, SiHLZ14S Vishay Siliconix Power MOSFET D D2PAK (TO-263) G GD S S N-Channel MOSFET PRODUCT SUMMARY VDS (V) RDS(on) () .
Third generation power MOSFETs from Vishay utilize advanced processing techniques to achieve extremely low on-resistance per silicon area.

IRLZ14S Features

* Advanced process technology
* Surface-mount
* 175 °C operating temperature Available
* Fast switching Available
* Material categorization: for definitions of compliance please see www. vishay. com/doc?99912 Note
* This datasheet provides informati

IRLZ14S Applications

* The D2PAK (TO-263) is a surface-mount power package capable of accommodating die sizes up to HEX-4. It provides the highest power capability and lowest possible on-resistance in any existing surface-mount package. The D2PAK (TO-263) is suitable for high current applications because of its low inter

📥 Download Datasheet

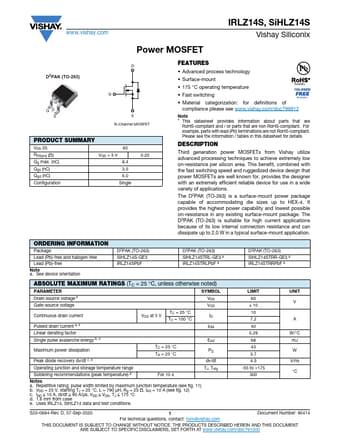

Preview of IRLZ14S PDF
datasheet Preview Page 2 datasheet Preview Page 3
