IRPT1053A Power Module for 1 hp Motor Drives

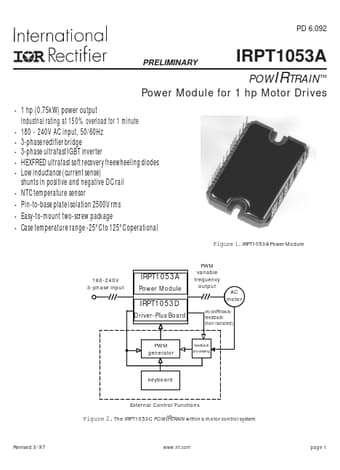

PD 6.092 PRELIMINARY IRPT1053A POWIRTRAIN™ Power Module for 1 hp Motor Drives 1 hp (0.75kW) power output Industrial rating at 150% overload for 1 minute 180 - 240V AC input, 50/60Hz 3-phase rectifier bridge 3-phase ultrafast IGBT inverter HEXFRED ultrafast soft recovery freewheeling diodes Low inductance (current sense) shunts in positive and negative DC rail NTC temperature sensor Pin-to-base plate isolation 2500V rms Easy-to-mount two-sc.
