IRPT1058 Datasheet - International Rectifier

IRPT1058 - Integrated Power Stage

The IRPT1058C provides the complete conversion function for a 0.75 hp (0.56 kW) variable frequency, variable voltage, AC motor controller.

The combines a power module IRPT1058A with a Driver-Plus Board IRPT1058D.

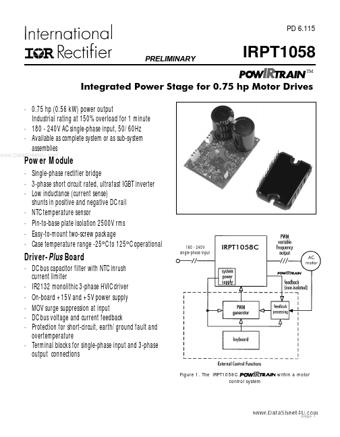

Figure 1 shows the block diagram of the within an AC motor control system.

The power mo

PD 6.115 PRELIMINARY IRPT1058 ΤΜ Integrated Power Stage for 0.75 hp Motor Drives 0.75 hp (0.56 kW) power output Industrial rating at 150% overload for 1 minute 180 - 240V AC single-phase input, 50/60Hz Available as complete system or as sub-system assemblies www.DataSheet4U.com Power Module Single-phase rectifier bridge 3-phase short circuit rated, ultrafast IGBT inverter Low inductance (current sense) shunts in positive and negative DC rail NTC tem

IRPT1058 Features

* grease on the heat sink, covering the entire ar

IRPT1058_InternationalRectifier.pdf

Preview of IRPT1058 PDF
IRPT1058 Datasheet Preview Page 2 IRPT1058 Datasheet Preview Page 3

Datasheet Details

Part number:

IRPT1058

Manufacturer:

International Rectifier

File Size:

338.07 KB

Description:

Integrated power stage.
