IRPT1058A - Power Module for 0.75 hp Motor Drives

Product Overview

International Rectifier

Datasheet Details

Part number	IRPT1058A
Manufacturer	International Rectifier
File Size	213.01 KB
Description	Power Module for 0.75 hp Motor Drives
Datasheet	IRPT1058A Datasheet
Additional preview pages of the IRPT1058A datasheet.

Product details

Description

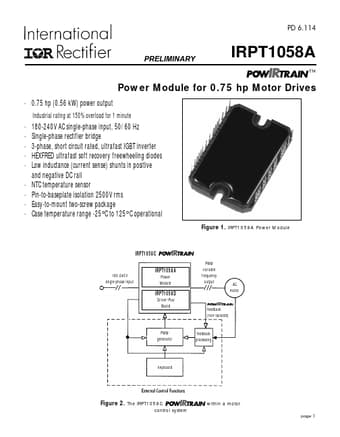

The IRPT1058A Power Module The IRPT1058A Power Module, shown in figure 1, is a chip and wire epoxy encapsulated module.It houses input rectifiers, output inverter, current sense shunts and NTC thermistor.The single-phase input bridge rectifiers are rated at 800V.The inverter section employs 600V, short circuit rated, ultrafast IGBTs and ultrafast freewheeling diodes.Current sensing is achieved through 75 mΩ low inductance shunts provided in the positive and negative DC bus rail.The NTC ther

Features

d with standard power module to meet all system specifications. IRP.
