IRPT1059

Integrated Power Stage for 1hp Motor Drives

IRPT1059 Features

* es and grit from the heat sink and power subst

IRPT1059 General Description

The IRPT1059C provides the complete conversion function for a 1hp (0.75kW) variable frequency, variable voltage, AC motor controller. The combines a power module IRPT1059A with a Driver-Plus Board IRPT1059D. Figure 1 shows the block diagram of the within an AC motor control system. The power module .

IRPT1059 Datasheet (333.85 KB)

Preview of IRPT1059 PDF

Datasheet Details

Part number:

IRPT1059

Manufacturer:

International Rectifier

File Size:

333.85 KB

Description:

Integrated power stage for 1hp motor drives.

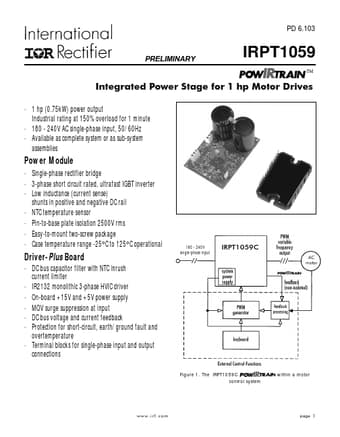

PD 6.103 PRELIMINARY IRPT1059 ΤΜ Integrated Power Stage for 1 hp Motor Drives
* 1 hp (0.75kW) power output Industrial rating at 150% overload f.
