IRS21366, IRS2136 (IRS2136x) 3-PHASE BRIDGE DRIVER

International Rectifier

Description

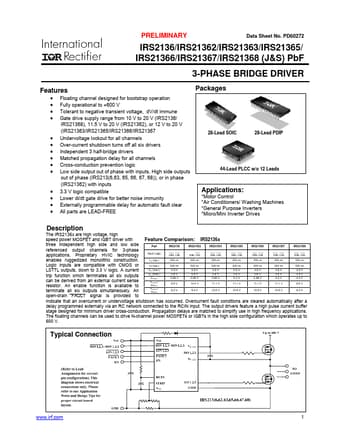

www.DataSheet4U.com PRELIMINARY Data Sheet No.PD60272 IRS2136/IRS21362/IRS21363/IRS21365/ IRS21366/IRS21367/IRS21368 (J&S) PbF 3-PHASE BRIDGE DRIV.
The IRS2136x are high voltage, high Feature Comparison: IRS2136x speed power MOSFET and IGBT driver with three independent high side and low side Part.

📥 Download Datasheet

IRS21366 Datasheet Preview — This datasheet PDF includes multiple part numbers: IRS21366, IRS2136. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: IRS21366, IRS2136
Manufacturer: International Rectifier
File Size: 631.42 KB
Datasheet: IRS2136_InternationalRectifier.pdf
Description: (IRS2136x) 3-PHASE BRIDGE DRIVER
Note: This datasheet PDF includes multiple part numbers: IRS21366, IRS2136.
Please refer to the document for exact specifications by model.

Features

* Floating channel designed for bootstrap operation Fully operational to +600 V Tolerant to negative transient voltage, dV/dt immune Gate drive supply range from

Applications

* Motor Control
* Air Conditioners/ Washing Machines
* General Purpose Inverters
