IRS2461S - 400V Class D Audio Amplifier Controller

Datasheet Summary

Description

The IRS2461S integrates high voltage, high performance Class D audio amplifier drivers with PWM modulator and protections.

In conjunction with external MOSFET, the IRS2461S forms a single channel Class D audio amplifier.

Features

  • Single channel integrated analog input Class D audio amplifier driver.
  • 400V high voltage gate driver stage.
  • Differential or single-ended input.
  • Versatile protection control enabling latched, non-latched, or host controlled shutdown function.
  • Programmable over current protection.
  • Programmable dead-time generation.
  • External thermal sensor input.
  • Click noise reduction.
  • Under voltage protection.
  • High noise immunity Product summary Product feature.

📥 Download Datasheet

Datasheet preview – IRS2461S

Datasheet Details

Part number IRS2461S
Manufacturer Infineon
File Size 499.31 KB
Description 400V Class D Audio Amplifier Controller
Datasheet download datasheet IRS2461S Datasheet
Additional preview pages of the IRS2461S datasheet.

📁 Similar Datasheet

  • IRS24531D - FULL-BRIDGE DRIVER (International Rectifier)
  • IRS24531DS - FULL-BRIDGE DRIVER (International Rectifier)
  • IRS2453D - FULL-BRIDGE DRIVER (International Rectifier)
  • IRS2453DPBF - SELF-OSCILLATING FULL-BRIDGE DRIVER IC (International Rectifier)
  • IRS2453DS - FULL-BRIDGE DRIVER (International Rectifier)
  • IRS2453DSPBF - SELF-OSCILLATING FULL-BRIDGE DRIVER IC (International Rectifier)
  • IRS2001 - HIGH AND LOW SIDE DRIVER (International Rectifier)
  • IRS2001MPBF - HIGH AND LOW SIDE DRIVER (International Rectifier)
  • IRS2001PBF - HIGH AND LOW SIDE DRIVER (International Rectifier)
  • IRS2001SPBF - HIGH AND LOW SIDE DRIVER (International Rectifier)
Other Datasheets by Infineon

Full PDF Text Transcription

Click to expand full text

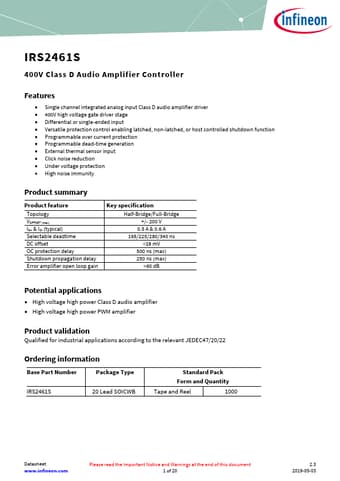

Error! Unknown document property name. IRS2461S 400V Class D Audio Amplifier Controller Features  Single channel integrated analog input Class D audio amplifier driver  400V high voltage gate driver stage  Differential or single-ended input  Versatile protection control enabling latched, non-latched, or host controlled shutdown function  Programmable over current protection  Programmable dead-time generation  External thermal sensor input  Click noise reduction  Under voltage protection  High noise immunity Product summary Product feature Topology VOFFSET (max) IO+ & IO- (typical) Selectable deadtime DC offset OC protection delay Shutdown propagation delay Error amplifier open loop gain Key specification Half-Bridge/Full-Bridge +/- 200 V 0.5 A & 0.
