Class D Audio

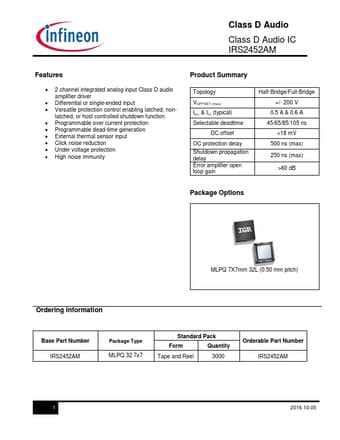

Class D Audio IC IRS2452AM
Features
• 2 channel integrated analog input Class D audio amplifier driver
• Differential or single-ended input • Versatile protection control enabling latched, non-
latched, or host controlled shutdown function • Programmable over current protection • Programmable dead-time generation • External thermal sensor input • Click noise reduction • Under voltage protection • High noise immunity
Product Summary
Topology
VOFFSET (max)
IO+ & IO- (typical)
Selectable deadtime
DC offset
OC protection delay Shutdown propagation delay Error amplifier open loop gain
Half-Bridge/Full-Bridge +/- 200 V
0.5 A & 0.6 A 45/65/85/105 ns
<18 mV 500 ns (max) 250 ns (max)
>60 dB
Package Options
MLPQ 7X7mm 32L (0.
IRS2452AM Datasheet
