IRSM515-024, IRSM505-024 Datasheet - International Rectifier

IRSM515-024 Integrated Power Module - IPM

IRSM505-024 and IRSM515-024 are 3-phase Integrated Power Modules (IPM) designed for advanced appliance motor drive applications such as energy efficient fans and pumps. These advanced IPMs offers a combination of low RDS(on) Trench FREDFET technology and the industry benchmark half-bridge high volta.

IRSM515-024 Features

* 250V 3-phase inverter including high voltage gate drivers

* Integrated bootstrap functionality

* Low 2.3Ω (max, 25°C) RDS(on) Trench FREDFET

* Under-voltage lockout for all channels

* Matched propagation delay for all channels

* Temperature feedback

IRSM505-024-InternationalRectifier.pdf

This datasheet PDF includes multiple part numbers: IRSM515-024, IRSM505-024. Please refer to the document for exact specifications by model.

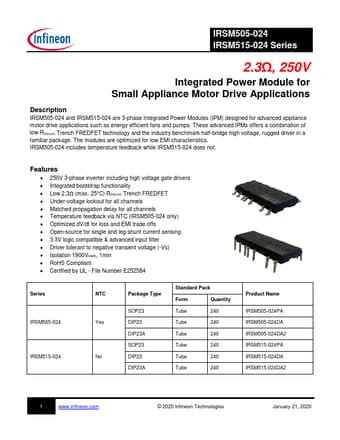

IRSM515-024 Datasheet Preview Page 2 IRSM515-024 Datasheet Preview Page 3

Datasheet Details

Part number:

IRSM515-024, IRSM505-024

Manufacturer:

International Rectifier

File Size:

577.01 KB

Description:

Integrated power module - ipm.

Note:

This datasheet PDF includes multiple part numbers: IRSM515-024, IRSM505-024.
Please refer to the document for exact specifications by model.
