IRSM515-025 Integrated Power Module - IPM

IRSM505-025 and IRSM515-025 are 3-phase Integrated Power Modules (IPM) designed for advanced appliance motor drive applications such as energy efficient fans and pumps. These advanced IPMs offers a combination of low RDS(on) Trench FREDFET technology and the industry benchmark half-bridge high volta.

IRSM515-025 Features

* 500V 3-phase inverter including high voltage gate drivers

* Integrated bootstrap functionality

* Low 4.0Ω (max, 25°C) RDS(on) Trench FREDFET

* Under-voltage lockout for all channels

* Matched propagation delay for all channels

* Temperature feedback

IRSM505-025-InternationalRectifier.pdf

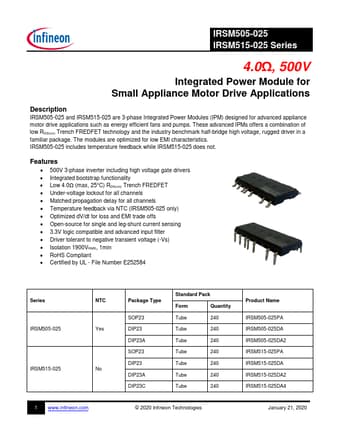

IRSM515-025 Datasheet Preview — This datasheet PDF includes multiple part numbers: IRSM515-025, IRSM505-025. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IRSM515-025, IRSM505-025

Manufacturer:

International Rectifier

File Size:

631.55 KB

Description:

Integrated power module - ipm.

Note:

This datasheet PDF includes multiple part numbers: IRSM515-025, IRSM505-025.
Please refer to the document for exact specifications by model.
