IRSM515-044, IRSM505-044 Datasheet - International Rectifier

IRSM515-044 Integrated Power Module - IPM

IRSM505-044 and IRSM515-044 are 3-phase Integrated Power Modules (IPM) designed for advanced appliance motor drive applications such as energy efficient fans and pumps. These advanced IPMs offers a combination of low RDS(on) Trench FREDFET technology and the industry benchmark half-bridge high volta.

IRSM515-044 Features

* 250V 3-phase inverter including high voltage gate drivers

* Integrated bootstrap functionality

* Low 1.0Ω (max, 25°C) RDS(on) Trench FREDFET

* Under-voltage lockout for all channels

* Matched propagation delay for all channels

* Temperature feedback via NTC (IRSM505-044 onl

IRSM505-044-InternationalRectifier.pdf

This datasheet PDF includes multiple part numbers: IRSM515-044, IRSM505-044. Please refer to the document for exact specifications by model.

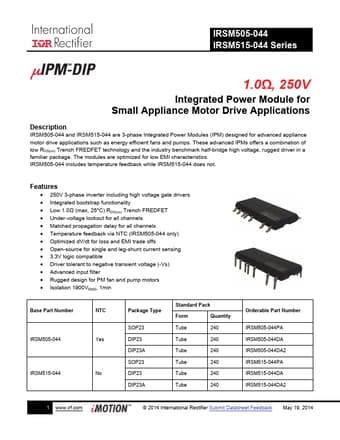

IRSM515-044 Datasheet Preview Page 2 IRSM515-044 Datasheet Preview Page 3
