5962-0623601QPC (5962-0623601QPC / 5962-0623602QPC) 670MHz Low Noise Amplifiers

Input Resistance Input Capacitance -3dB Bandwidth ±0.1dB Bandwidth Gain Bandwidth Product Phase Margin Slew Rate Rise Time, Fall Time Overshoot 0.01% Settling Time Differential Gain Differential Phase Input Noise Voltage Input Noise Current dP eN iN ENABLE (5962-0623601QPC Only) tEN tDIS Enable Ti.
® 5962-0623601QPC, 5962-0623602QPC Data Sheet March 28, 2007 FN6473.0 670MHz Low Noise Amplifiers The 5962-0623601QPC and 5962-0623602QPC are fully DSCC SMD compliant parts and the SMD data sheets are available on the DSCC website (http://www.dscc.dla.mil/ programs/specfind/default.asp). The 5962-0623601QPC is electrically equivalent to the EL5132 and the 5962-0623602QPC is electrically equivalent to the EL5133, reference these data sheets for additional information. These amplifiers are ultra.

5962-0623601QPC Features

* 670MHz -3dB bandwidth

* Ultra low noise 0.9nV/√Hz

* 1000V/µs slew rate

* Low supply current = 16mA

* Single supplies from 5V to 12V

* Dual supplies from ±2.5V to ±6V

* Fast disable on the 5962-0623601QPC Applications

* Pre-amplifier

5962-0623601QPC_IntersilCorporation.pdf

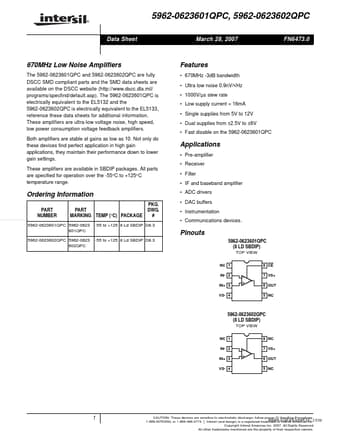

Preview of 5962-0623601QPC PDF
5962-0623601QPC Datasheet Preview Page 2 5962-0623601QPC Datasheet Preview Page 3

Datasheet Details

Part number:

5962-0623601QPC

Manufacturer:

Intersil Corporation

File Size:

131.42 KB

Description:

(5962-0623601qpc / 5962-0623602qpc) 670mhz low noise amplifiers.
