5962-0620705 - RS-232 Transmitters/Receivers

Intersil

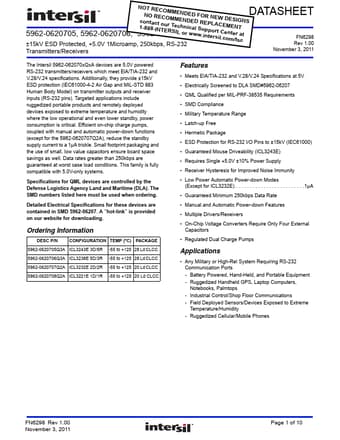

5962-0620705 Datasheet Preview — Preview of 5962-0620705 PDF

Datasheet Details

Part number	5962-0620705
Manufacturer	Intersil
File Size	383.34 KB
Description	RS-232 Transmitters/Receivers
Datasheet	5962-0620705-Intersil.pdf

5962-0620705 Product details

Description

PIN FUNCTION VCC System power supply input (4.5V to 5.5V).V+ Internally generated positive transmitter supply.V- Internally generated negative transmitter supply.GND Ground connection.C1+ External capacitor (voltage doubler) is connected to this lead.C1- External capacitor (voltage doubler) is connected to this lead.C2+ External capacitor (voltage inverter) is connected to this lead.C2- External capacitor (voltage inverter) is connected to this lead.TIN TOUT RIN ROUT

Features

Meets EIA/TIA-232 and V.28/V.24 Specifications at 5V.
Electrically Screened to DLA SMD#5962-06207.
QML Qualified per MIL-PRF-38535 Requirements.
SMD Compliance.
Military Temperature Range.
Latch-up Free.
Hermetic Package.
ESD Protection for RS-232 I/O Pins to ±15kV (IEC61000).
Guaranteed Mouse Driveability (ICL3243E).
Requires Single +5.0V ±10% Power Supply.
Receiver Hysteresis for Improved Noise.
