5962-0620702, 5962-0620701 Datasheet - Intersil

5962-0620702 RS-232 Transmitters/Receivers

PIN FUNCTION VCC System power supply input (3.0V to 3.6V). V+ Internally generated positive transmitter supply (+5.5V). V- Internally generated negative transmitter supply (-5.5V). GND Ground connection. C1+ External capacitor (voltage doubler) is connected to this lead. C1- External .

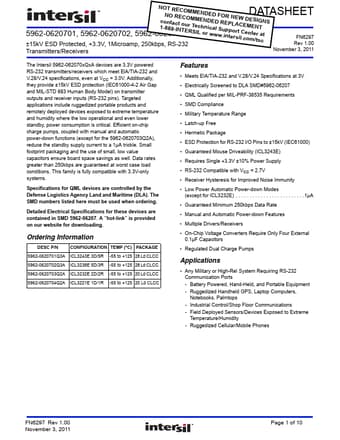

DATASHEET 5±1956k2V-E0S6D20P7ro0te1c,te5d9, +632.3-0V,612M0ic7r0oa2m, p5,926520k-b0pN61csO-o2,N8nT8R0Ot8RaS7-RcIE-0Nt2EC3To3COEu2,OMrR5MTSM9eMIELc6ENho2NnDr-DiEcw0EaDw6Dl Fw2SROu.0iEnpR7PtpeN0LorEA4rstWiClC.EceDoMnEmEtSe/NtrIsGTacNt S FN6297 Rev 1.00 Transmitters/Receivers November 3, 2011 The Intersil 5962-062070xQxA devices are 3.3V powered RS-232 transmitters/receivers which meet ElA/TIA-232 and V.28/V.24 specifications, even at VCC = 3.0V. Additionally, they provide ±15kV ESD protection .

5962-0620702 Features

* Meets EIA/TIA-232 and V.28/V.24 Specifications at 3V

* Electrically Screened to DLA SMD#5962-06207

* QML Qualified per MIL-PRF-38535 Requirements

* SMD Compliance

* Military Temperature Range

* Latch-up Free

* Hermetic Package

* ESD P

5962-0620701-Intersil.pdf

5962-0620702 Datasheet Preview — This datasheet PDF includes multiple part numbers: 5962-0620702, 5962-0620701. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

5962-0620702, 5962-0620701

Manufacturer:

Intersil

File Size:

385.68 KB

Description:

Rs-232 transmitters/receivers.

Note:

This datasheet PDF includes multiple part numbers: 5962-0620702, 5962-0620701.
Please refer to the document for exact specifications by model.
