5962-0620707 Datasheet - Intersil

5962-0620707 RS-232 Transmitters/Receivers

PIN FUNCTION VCC System power supply input (4.5V to 5.5V). V+ Internally generated positive transmitter supply. V- Internally generated negative transmitter supply. GND Ground connection. C1+ External capacitor (voltage doubler) is connected to this lead. C1- External capacitor (volta.

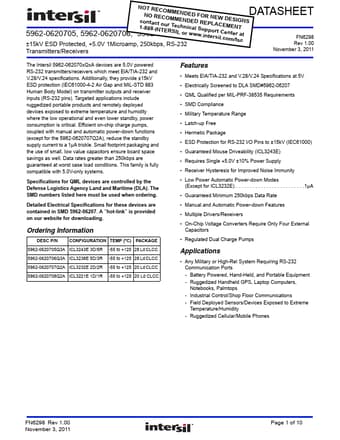

DATASHEET 5±1956k2V-E0S6D20P7ro0te5c,te5d9, +652.0-0V612M0ic7ro0a6m,p,5N1c29O-o5N86nT08Ot28kRa-bRc-IENp0tECsTo6CO,EuO2RMrRM0STSMeM7-IELc20ENh3oN7nD2rDi,EcwEaD5wDl9FwSR6Ou.iEn2pRPtp-eNLo0rEArs6tWiCl2C.Ece0DoMnE7mEtSe0/NtrIsG8TacNt S FN6298 Rev 1.00 Transmitters/Receivers November 3, 2011 The Intersil 5962-062070xQxA devices are 5.0V powered RS-232 transmitters/receivers which meet ElA/TIA-232 and V.28/V.24 specifications. Additionally, they provide ±15kV ESD protection (IEC61000-4-2 Air Gap a.

5962-0620707 Features

* Meets EIA/TIA-232 and V.28/V.24 Specifications at 5V

* Electrically Screened to DLA SMD#5962-06207

* QML Qualified per MIL-PRF-38535 Requirements

* SMD Compliance

* Military Temperature Range

* Latch-up Free

* Hermetic Package

* ESD P
