CD40102BMS

CMOS 8-Stage Presettable Synchronous Down Counters

CD40102BMS Features

* High Voltage Type (20V Rating)

* CD40102BMS: 2-Decade BCD Type

* CD40103BMS: 8-Bit Binary Type

* Synchronous or Asynchronous Preset

* Medium Speed Operation - fCL = 3.6MHz (Typ) at 10V

* Cascadable

* 100% Tested for Quiescent Current at 20V

CD40102BMS General Description

CD40102BMS and CD40103BMS consist of an 8-stage synchronous down counter with a single output which is active when the internal count is zero. The CD40102BMS is configured as two cascaded 4-bit BCD counters, and the CD40103BMS contains a single 8-bit binary counter. Each type has control inputs for e.

CD40102BMS Datasheet (166.84 KB)

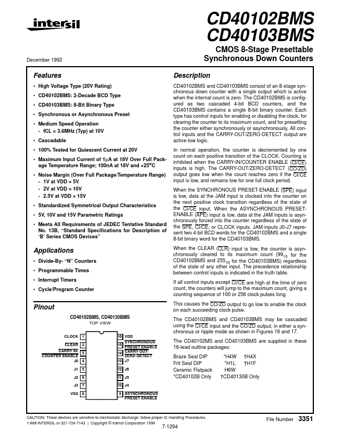

Preview of CD40102BMS PDF

Datasheet Details

Part number:

CD40102BMS

Manufacturer:

Intersil Corporation

File Size:

166.84 KB

Description:

Cmos 8-stage presettable synchronous down counters.
