CD4556BMS Datasheet, Decoder/demultiplexers, Intersil Corporation

CD4556BMS Features

  • Decoder/demultiplexers
  • High Voltage Type (20V Rating)
  • CD4555BMS: Outputs High on Select
  • CD4556BMS: Outputs Low on Select
  • Expandable with Multiple Packages CD4556BMS TO

PDF File Details

Part number:

CD4556BMS

Manufacturer:

Intersil Corporation

File Size:

96.41kb

Download:

📄 Datasheet

Description:

Cmos dual binary to 1 of 4 decoder/demultiplexers. of ‘B’ Series CMOS Devices” 1/2 OF DUAL CD4555BMS TOP VIEW E A B Q0 Q1 Q2 Q3 VSS 1 2 3 4 5 6 7 8 16 VDD 15 E 14 A 13 B 12 Q0 11 Q1 1

Datasheet Preview: CD4556BMS 📥 Download PDF (96.41kb)

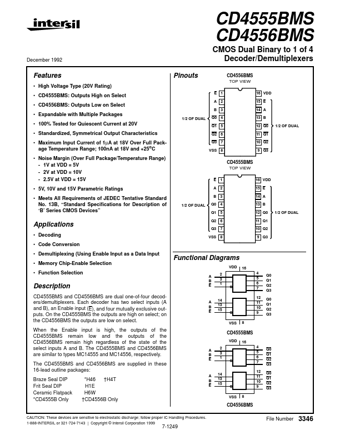

Page 2 of CD4556BMS Page 3 of CD4556BMS

CD4556BMS Application

  • Applications
  • Decoding
  • Code Conversion
  • Demultiplexing (Using Enable Input as a Data Input
  • Memory Chip-Enable
