CD4504BT - CMOS Hex Voltage Level Shifter for TTL-to-CMOS or CMOS-to-CMOS Operation

Datasheet Summary

Description

only.

Intersil Corporation reserves the right to make changes in circuit design and/or specifications at any time without notice.

Accordingly, the reader is cautioned to verify that data sheets are current before placing orders.

Features

  • QML Class T, Per MIL-PRF-38535.
  • Radiation Performance - Gamma Dose (γ) 1 x 105 RAD(Si) - SEP Effective LET > 75 MEV/gm/cm2.
  • Independence of Power Supply Sequence Considerations - VCC Can Exceed VDD - Input Signals can Exceed Both VCC and VDD.
  • Up and Down Level Shifting Capability.
  • Shiftable Input Threshold for Either CMOS or TTL Compatibility.
  • 100% Tested for Quiescent Current at 20V.
  • 5V, 10V and 15V Parametric Ratings.
  • Sta.

📥 Download Datasheet

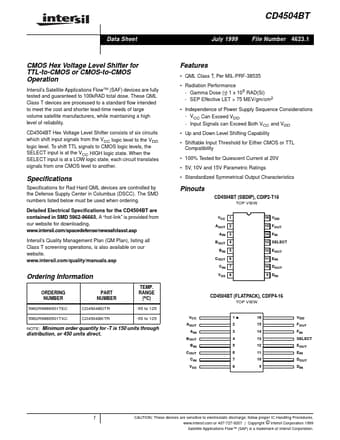

Datasheet preview – CD4504BT

Datasheet Details

Part number CD4504BT
Manufacturer Intersil Corporation
File Size 33.25 KB
Description CMOS Hex Voltage Level Shifter for TTL-to-CMOS or CMOS-to-CMOS Operation
Datasheet download datasheet CD4504BT Datasheet
Additional preview pages of the CD4504BT datasheet.

📁 Similar Datasheet

  • CD4504B - CMOS HEX VOLTAGE-LEVEL SHIFTER (ETCTI)
  • CD4504B-EP - CMOS Hex Voltage-Level Shifter for TTL-to-CMOS or CMOS-to-CMOS Operation (ETCTI)
  • CD4504B-MIL - CMOS HEX VOLTAGE-LEVEL SHIFTER (ETCTI)
  • CD4502B - CMOS Strobed Hex Inverter/Buffer (ETCTI)
  • CD4502B - CMOS Strobed Hex Inverter/Buffer (RCA)
  • CD4502B-MIL - CMOS Strobed Hex Inverter/Buffer (ETCTI)
  • CD4503B - CMOS HEX BUFFER (ETCTI)
  • CD4503B - CMOS HEX BUFFER (RCA)
  • CD4503BC - Hex Non-Inverting TRI-STATE Buffer (National Semiconductor)
  • CD4503BC - Hex Non-Inverting 3-STATE Buffer (Fairchild Semiconductor)
Other Datasheets by Intersil Corporation
  • CD4504BMS - CMOS Hex Voltage Level Shifter for TTL-to-CMOS or CMOS-to-CMOS Operation
  • CD4502BMS - CMOS Strobed Hex Inverter/Buffer
  • CD4503BMS - CMOS Hex Buffer
  • CD4508BMS - CMOS Dual 4-Bit Latch
  • CD4510BMS - CMOS Presettable Up/Down Counters
  • CD4511BMS - CMOS BCD-to-7-Segment Latch Decoder Drivers
  • CD4512BMS - CMOS Dual 4-Bit Latch
  • CD4514BMS - CMOS 4-Bit Latch/4-to-16 Line Decoders

Full PDF Text Transcription

Click to expand full text
CD4504BT Data Sheet July 1999 File Number 4623.1 CMOS Hex Voltage Level Shifter for TTL-to-CMOS or CMOS-to-CMOS Operation Intersil’s Satellite Applications FlowTM (SAF) devices are fully tested and guaranteed to 100kRAD total dose. These QML Class T devices are processed to a standard flow intended to meet the cost and shorter lead-time needs of large volume satellite manufacturers, while maintaining a high level of reliability. CD4504BT Hex Voltage Level Shifter consists of six circuits which shift input signals from the VCC logic level to the VDD logic level. To shift TTL signals to CMOS logic levels, the SELECT input is at the VCC HIGH logic state. When the SELECT input is at a LOW logic state, each circuit translates signals from one CMOS level to another.
