CDP1857CD

4-Bit Bus Buffer/Separator

CDP1857CD Features

* Provides Easy Connection of I/O to CDP1800-Series Microprocessor Data Bus

* Non-Inverting Fully Buffered Data Transfer Ordering Information PART NUMBER CDP1857CE CDP1857CD TEMP. RANGE -40oC to +85oC -40oC to +85oC PACKAGE PDIP SBDIP PKG. NO. E16.3 D16.3 TABLE 1. CDP1857 FUNCTION

CDP1857CD General Description

The CDP1857C is a 4-bit CMOS non-inverting bus separator designed for use in CDP1800-series microprocessor systems. It can be controlled directly by a 1800-series microprocessor without the use of additional components. The CDP1857 is designed for use as a bus buffer or separator between the 1800-se.

CDP1857CD Datasheet (25.18 KB)

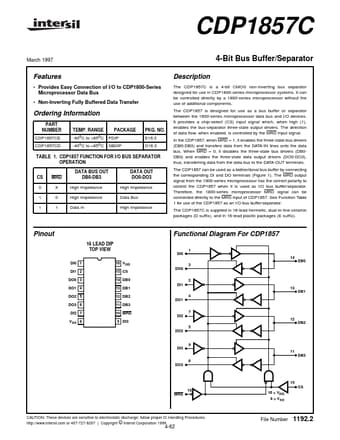

Preview of CDP1857CD PDF

Datasheet Details

Part number:

CDP1857CD

Manufacturer:

Intersil Corporation

File Size:

25.18 KB

Description:

4-bit bus buffer/separator.
