CDP1857CE Datasheet, Buffer/separator, Intersil Corporation

CDP1857CE Features

  • Buffer/separator
  • Provides Easy Connection of I/O to CDP1800-Series Microprocessor Data Bus
  • Non-Inverting Fully Buffered Data Transfer Ordering Information PART NUMBER CDP1857CE CDP1

PDF File Details

Part number:

CDP1857CE

Manufacturer:

Intersil Corporation

File Size:

25.18kb

Download:

📄 Datasheet

Description:

4-bit bus buffer/separator. The CDP1857C is a 4-bit CMOS non-inverting bus separator designed for use in CDP1800-series microprocessor systems. It can be control

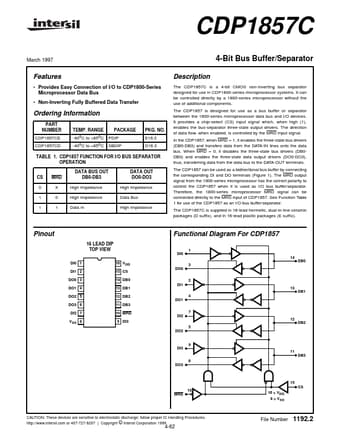

Datasheet Preview: CDP1857CE 📥 Download PDF (25.18kb)
Page 2 of CDP1857CE Page 3 of CDP1857CE

CDP1857CE Application

  • Applications CDP1857 DO0-DO3 BUS DB0-DB3 DI0-DI3 BUS MRD CS DIRECTION CONTROL ENABLE BUS-TO-BUS DATA TRANSFER FIGURE 2. CDP1857 BIDIRECTIONAL
