CDP1882 Datasheet, Interfaces, Intersil Corporation

CDP1882 Features

  • Interfaces
  • Performs Memory Address Latch and Decoder Functions Multiplexed or Non-Multiplexed
  • Decodes Up to 16K Bytes of Memory
  • Interfaces Directly with CDP1800-Serie

PDF File Details

Part number:

CDP1882

Manufacturer:

Intersil Corporation

File Size:

48.40kb

Download:

📄 Datasheet

Description:

Cmos 6-bit latch and decoder memory interfaces. The CDP1881C, CDP1882 and CDP1882C are CMOS 6-bit memory latch and decoder circuits intended for use in CDP1800 series microprocessor

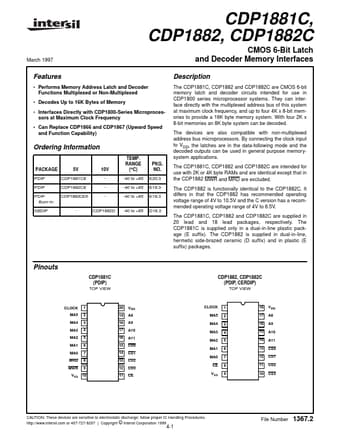

Datasheet Preview: CDP1882 📥 Download PDF (48.40kb)
Page 2 of CDP1882 Page 3 of CDP1882

CDP1882 Application

  • Applications The CDP1881C, CDP1882 and CDP1882C are intended for use with 2K or 4K byte RAMs and are identical except that in the CDP1882 MWR and M
