CDP1883C

CMOS 7-Bit Latch and Decoder Memory Interfaces

CDP1883C Features

* Performs Memory Address Latch and Decoder Functions Multiplexed or Non-Multiplexed

* Interfaces Directly with the CDP1800-Series Microprocessors

* Allows Decoding for Systems Up to 32K Bytes Ordering Information 5V 10V TEMP. RANGE -40oC to +85oC PACKAGE PDIP PKG. NO. E20.3

CDP1883C General Description

The CDP1883 is a CMOS 7-bit memory latch and decoder circuit intended for use in CDP1800-series microprocessor systems. It can serve as a direct interface between the multiplexed address bus of this system and up to four 8K x 8-bit memories to implement a 32K-byte memory system. With four 4K x 8-bit.

CDP1883C Datasheet (32.74 KB)

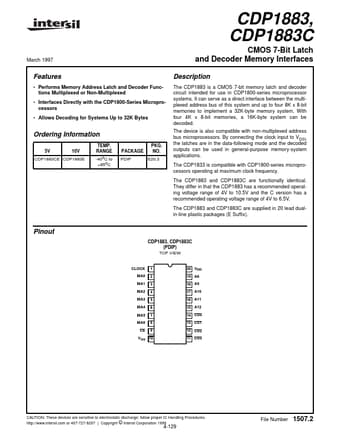

Preview of CDP1883C PDF

Datasheet Details

Part number:

CDP1883C

Manufacturer:

Intersil Corporation

File Size:

32.74 KB

Description:

Cmos 7-bit latch and decoder memory interfaces.
