HD3-6402R-9

CMOS Universal Asynchronous Receiver Transmitter (UART)

HD3-6402R-9 Features

* 8.0MHz Operating Frequency (HD-6402B)

* 2.0MHz Operating Frequency (HD-6402R)

* Low Power CMOS Design

* Programmable Word Length, Stop Bits and Parity

* Automatic Data Formatting and Status Generation

* Compatible with Industry Standard UARTs

HD3-6402R-9 General Description

The HD-6402 is a CMOS UART for interfacing computers or microprocessors to an asynchronous serial data channel. The receiver converts serial start, data, parity and stop bits. The transmitter converts parallel data into serial form and automatically adds start, parity and stop bits. The data word le.

HD3-6402R-9 Datasheet (154.02 KB)

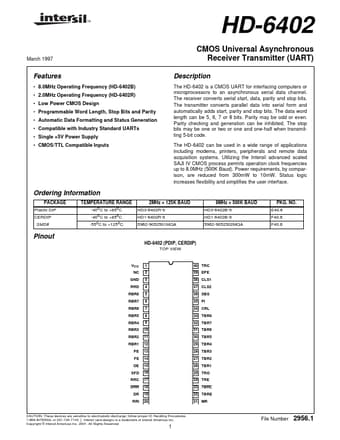

Preview of HD3-6402R-9 PDF

Datasheet Details

Part number:

HD3-6402R-9

Manufacturer:

Intersil Corporation

File Size:

154.02 KB

Description:

Cmos universal asynchronous receiver transmitter (uart).
