HD3-6409-9

CMOS Manchester Encoder-Decoder

HD3-6409-9 Features

* Converter or Repeater Mode

* Independent Manchester Encoder and Decoder Operation

* Static to One Megabit/sec Data Rate Guaranteed

* Low Bit Error Rate

* Digital PLL Clock Recovery

* On Chip Oscillator

* Low Operating Power: 50mW Typical at +

HD3-6409-9 General Description

The HD-6409 Manchester Encoder-Decoder (MED) is a high speed, low power device manufactured using self-aligned silicon gate technology. The device is intended for use in serial data communication, and can be operated in either of two modes. In the converter mode, the MED converts Non return-to-Zero .

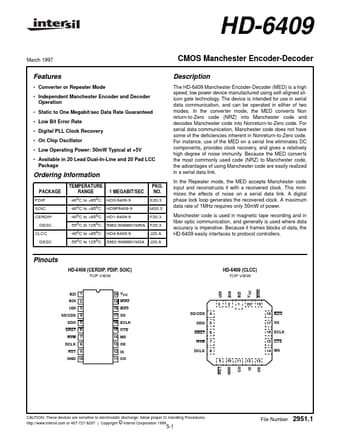

HD3-6409-9 Datasheet (68.68 KB)

Preview of HD3-6409-9 PDF

Datasheet Details

Part number:

HD3-6409-9

Manufacturer:

Intersil Corporation

File Size:

68.68 KB

Description:

Cmos manchester encoder-decoder.
