HD3502, HD3500-WON, 35A GLASS PASSIVATED HITACHI TYPE PRESS-FIT DIODE

® WON-TOP ELECTRONICS HD3500 * HD3506 35A GLASS PASSIVATED HITACHI TYPE PRESS-FIT DIODE Pb .

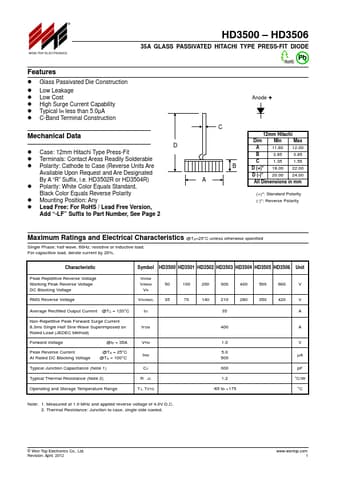

datasheet Preview Page 1 from Datasheet4u.com

HD3500-WON-TOP.pdf

HD3502 Datasheet Preview — This datasheet PDF includes multiple part numbers: HD3502, HD3500-WON. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

HD3502, HD3500-WON

Manufacturer:

WON-TOP

File Size:

27.71 KB

Description:

35A GLASS PASSIVATED HITACHI TYPE PRESS-FIT DIODE

Note:

This datasheet PDF includes multiple part numbers: HD3502, HD3500-WON.
Please refer to the document for exact specifications by model.

Features

* Glass Passivated Die Construction
* Low Leakage
* Low Cost
* High Surge Current Capability
* Typical IR less than 5.0µA
* C-Band Terminal Construction Mechanical Data
* Case: 12mm Hitachi Type Press-Fit
* Terminals: Contact Areas Readily Solderable
* Polarity:
