HD3505 - 35A GLASS PASSIVATED HITACHI TYPE PRESS-FIT DIODE

Product Overview

WON-TOP

Part number	HD3505
Manufacturer	WON-TOP
File Size	27.71 KB
Description	35A GLASS PASSIVATED HITACHI TYPE PRESS-FIT DIODE
Datasheet	HD3505 Datasheet
Note	This datasheet PDF includes multiple part numbers: HD3505, HD3500-WON. Please refer to the document for exact specifications by model.

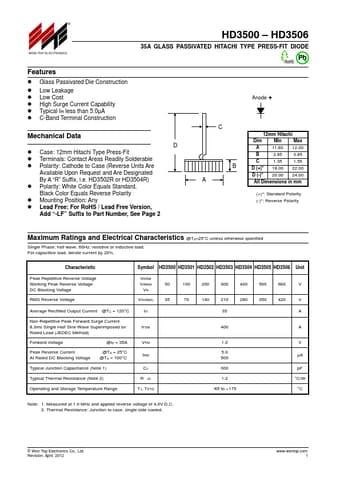

Additional preview pages of the HD3505 datasheet.

Glass Passivated Die Construction.
Low Leakage.
Low Cost.
High Surge Current Capability.
Typical IR less than 5.0µA.
C-Band Terminal Construction Mechanical Data.
Case: 12mm Hitachi Type Press-Fit.
Terminals: Contact Areas Readily Solderable.
Polarity: Cathode to Case (Reverse Units Are Available Upon Request and Are Designated By A “R” Suffix, i. e. HD3502R or HD3504R).
Polarity: White Color Equals Standard, Black Color Equals Reverse Polarity.
