HI5675 - Flash A/D Converter

Datasheet Summary

Description

PIN NUMBER 1 2, 24 3-10 11, 13 12 16 17 23 14, 15, 18 19 20, 21 22 SYMBOL OE DVSS D0 to D7 DVDD CLK VRTS VRT VRB AVDD VIN AVSS VRBS DESCRIPTION When OE = Low, Data is valid.

When OE = High, D0 to D7 pins high impedance.

Digital GND.

Features

  • digital output enable/disable and a built in voltage reference. The HI5675 can be configured to use the internal reference or an external reference if higher precision is required. Features.
  • Resolution.
  • 8-Bit ±0.3 LSB (DNL).
  • Maximum Sampling Frequency.
  • . . . . 20MSPS.
  • Low Power Consumption.
  • .60mW (Reference Current Excluded).
  • Built-In Sample and Hold Circuit.
  • Built.

📥 Download Datasheet

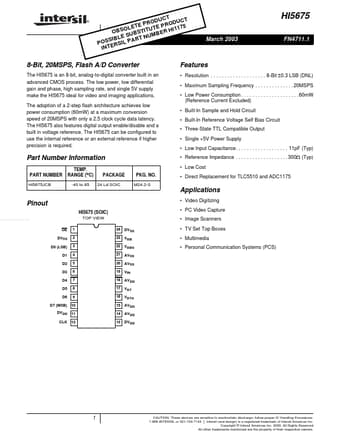

Datasheet preview – HI5675

Datasheet Details

Part number HI5675
Manufacturer Intersil Corporation
File Size 500.33 KB
Description Flash A/D Converter
Datasheet download datasheet HI5675 Datasheet
Additional preview pages of the HI5675 datasheet.

📁 Similar Datasheet

  • HI5628 - 8-Bit / 165/125/60MSPS / Dual High Speed CMOS D/A Converter (Intersil)
  • HI50 - NPN EPITAXIAL PLANAR TRANSISTOR (Hi-Sincerity Mocroelectronics)
  • Hi5001Q - High-precision flicker-free dimming buck and boost LED constant current driver (Hichips)
  • Hi512A4L - Parallel Differential DMX512 Decoding Driver (Hichips)
  • Hi512D - Differential Parallel DMX512 Decoding Constant Current Driver (Hichips)
  • Hi512E - Low-power differential parallel DMX512 decoding constant current driver (Hichips)
  • HI5731 - High Speed D/A Converter (Renesas)
  • HI5760 - High Speed D/A Converter (Renesas)
  • HI5805 - 12-Bit 5MSPS A/D Converter (Renesas)
Other Datasheets by Intersil Corporation
  • HI5630 - 80MSPS A/D Converter
  • HI5634 - High Performance Programmable Phase-Locked Loop
  • HI5660 - High Speed D/A Converter
  • HI5662 - 60MSPS A/D Converter
  • HI5667 - 60MSPS A/D Converter
  • HI506 - Single 16 and 8/Differential 8-Channel and 4-Channel CMOS Analog Multiplexers
  • HI507 - Single 16 and 8/Differential 8-Channel and 4-Channel CMOS Analog Multiplexers
  • HI508 - Single 16 and 8/Differential 8-Channel and 4-Channel CMOS Analog Multiplexers

Full PDF Text Transcription

Click to expand full text
® CT ODU ODUCT R P PR TE 5 O LE I117 U TE O B S U B STI T M B E R H E S RT NU Data SIBLSheet S PA O P R SI L I N TE HI5675 March 2003 FN4711.1 8-Bit, 20MSPS, Flash A/D Converter The HI5675 is an 8-bit, analog-to-digital converter built in an advanced CMOS process. The low power, low differential gain and phase, high sampling rate, and single 5V supply make the HI5675 ideal for video and imaging applications. The adoption of a 2-step flash architecture achieves low power consumption (60mW) at a maximum conversion speed of 20MSPS with only a 2.5 clock cycle data latency. The HI5675 also features digital output enable/disable and a built in voltage reference. The HI5675 can be configured to use the internal reference or an external reference if higher precision is required.
