HIP6201 - Transient Voltage Regulator DeCAPitator

Intersil Corporation

The HIP6201 by Intersil Corporation is a Transient Voltage Regulator DeCAPitator. Below is the official datasheet preview.

📥 Download Datasheet

HIP6201 Transient Voltage Regulator DeCAPitator by Intersil Corporation - Datasheet Preview — Official preview page of the **HIP6201** Transient Voltage Regulator DeCAPitator datasheet (Intersil Corporation).

Datasheet Details

Part number	HIP6201
Manufacturer	Intersil Corporation
File Size	87.30 KB
Description	Transient Voltage Regulator DeCAPitator
Datasheet	HIP6201_IntersilCorporation.pdf

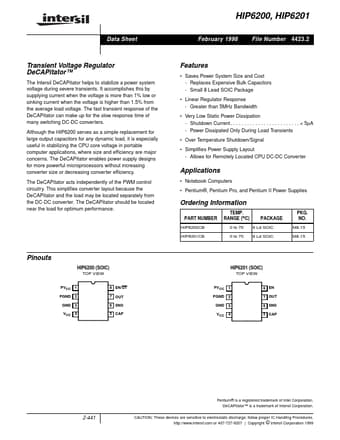

Additional preview pages of the HIP6201 datasheet.

HIP6201 Product details

Description

PVCC (Pin 1) PVCC is the power source for the npn transistor output device.PVCC is connected internally to VCC through a resistor.Bulk capacitance should be placed between this pin and PGND to minimize voltage deviations.SNS (Pin 6) SNS is the remote sense of the output voltage to be regulated.If the output voltage increases rapidly by greater than 1.5%, the lower ampliﬁer responds by turning on the NChannel MOSFET to sink current through the OUT pin to PGND.If the output voltage decreases

Features

Saves Power System Size and Cost - Replaces Expensive Bulk Capacitors - Small 8 Lead SOIC Package.
Linear Regulator Response - Greater than 5MHz Bandwidth.
Very Low Static Power Dissipation - Shutdown Current.
< 5µA - Power Dissipated Only During Load Transients.
Over Temperature Shutdown/Signal.
Simpliﬁes Power Supply Layout - Allows for Remotely Located CPU DC-DC Converter.
