HRF3205, HRF3205S Data Sheet June 1999 File Number 4447.4 100A, 55V, 0.008 Ohm, N-Channel, Power MOSFETs These are N-Channel enhancement mode silicon gate power ﬁeld effect transistors. They are advanced power MOSFETs designed, tested, and guaranteed to withstand a speciﬁed level of energy in the breakdown avalanche mode of operation. All of these power MOSFETs are designed for applications such as switching regulators, switching converters, motor drivers, relay drivers, and drivers for high po.

HRF3205S Features

* 100A, 55V (See Note)

* Low On-Resistance, rDS(ON) = 0.008Ω

* Temperature Compensating PSPICE® Model

* Thermal Impedance SPICE Model

* UIS Rating Curve

* Related Literature - TB334, “Guidelines for Soldering Surface Mount Components to PC Boards” Sym

HRF3205S Datasheet (82.74 KB)

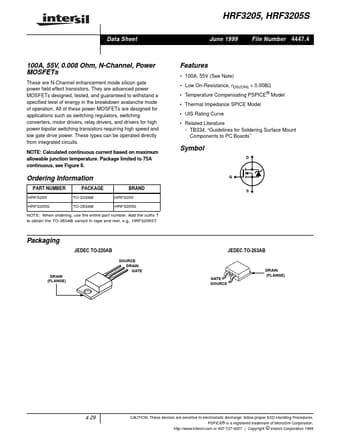

HRF3205S Datasheet Preview — Preview of HRF3205S PDF
