HRF120N10K - N-Channel MOSFET

HRF120N10K Description

HRF120N10K HRF120N10K 100V N-Channel Trench MOSFET .

HRF120N10K Features

*  BVDSS = 100 V  ID = 73 A  Unrivalled Gate Charge : 65 nC (Typ. )  Lower RDS(ON) : 10 mΩ (Typ. ) @VGS=10V  100% Avalanche Tested December 2014 8DFN 5x6 1 Absolute Maximum Ratings TC=25℃ unless otherwise specified Symbol Parameter Value VDSS ID IDM VGS EAS EAR PD TJ, TSTG TL Drain-Source Vo

📥 Download Datasheet

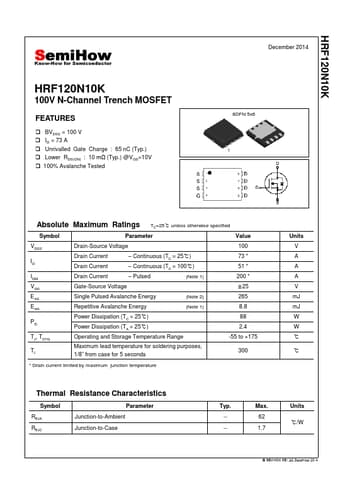

Preview of HRF120N10K PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HRF120N10K
Manufacturer
SemiHow
File Size
886.56 KB
Datasheet
HRF120N10K-SemiHow.pdf
Description
N-Channel MOSFET
