HRF130N06K - 60V N-Channel Trench MOSFET

HRF130N06K Description

HRF130N06K HRF130N06K 60V N-Channel Trench MOSFET .

HRF130N06K Features

* ‰ BVDSS = 60 V ‰ ID = 48 A ‰ Unrivalled Gate Charge : 42 nC (Typ. ) ‰ Lower RDS(ON) : 10.5 Pȍ (Typ. ) @VGS=10V ‰ 100% Avalanche Tested Jan 2016 8DFN 5x6 1 Absolute Maximum Ratings TJ=25୅ unless otherwise specified Symbol Parameter Value VDSS VGS ID IDM EAS PD TJ, TSTG Drain-Source Voltage Gate

📥 Download Datasheet

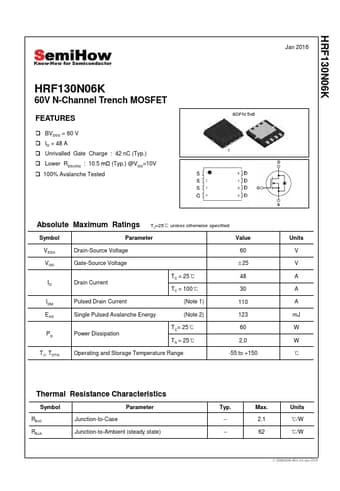

Preview of HRF130N06K PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HRF130N06K
Manufacturer
SemiHow
File Size
171.84 KB
Datasheet
HRF130N06K-SemiHow.pdf
Description
60V N-Channel Trench MOSFET
