HS-3282, CMOS ARINC Bus Interface Circuit

PKG.

DWG.

# TEMP.

RANGE N/A HS4-3282-8 44 Ld CLCC, Solder Seal J44.A -55 to +125°C 5962-8688001QA 5962-8688001QA 40 Ld CERDIP, Solder Seal F40.6 N/A HS1-3282-8 40 Ld CERDIP, Solder Seal F40.6 NOTES: 1.

Specifications for Rad Hard QML devices are controlled by the Defense Logistics Ag

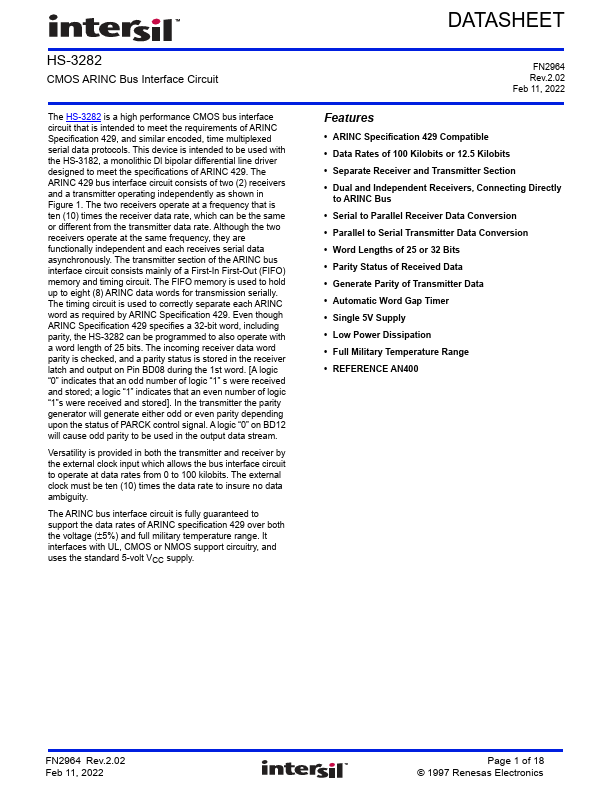

HS-3282 CMOS ARINC Bus Interface Circuit The HS-3282 is a high performance CMOS bus interface circuit that is intended to meet the requirements of ARINC Specification 429, and similar encoded, time multiplexed serial data protocols.

This device is intended to be used with the HS-3182, a monolithic Dl bipolar differential line driver designed to meet the specifications of ARINC 429.

The ARINC 429 bus interface circuit consists of two (2) receivers and a transmitter operating independently as show

HS-3282 Features

* ARlNC Specification 429 Compatible

* Data Rates of 100 Kilobits or 12.5 Kilobits

* Separate Receiver and Transmitter Section

* Dual and Independent Receivers, Connecting Directly to ARINC Bus

* Serial to Parallel Receiver Data Conversion

* Parallel t
