HS1-508ARH-T - Radiation Hardened 8 Channel CMOS Analog Multiplexer with Overvoltage Protection

Datasheet Summary

Description

only.

Intersil Corporation reserves the right to make changes in circuit design and/or specifications at any time without notice.

Accordingly, the reader is cautioned to verify that data sheets are current before placing orders.

Features

QML Class T, Per MIL-PRF-38535.
Radiation Performance - Gamma Dose (γ) 1 x 105 RAD(Si) - No Latch-Up, Dielectrically Isolated Device Islands - SEP LET > 110MeV/mg/cm2.
Analog/Digital Overvoltage Protection.
Fail Safe with Power Loss (No Latchup).
Break-Before-Make Switching.
DTL/TTL and CMOS Compatible.
Analog Signal Range ±15V.
Fast Access Time.
Supply Current at 1MHz Address Toggle (Typ) 4mA.
Standby Pow.

Intersil Corporation

📥 Download Datasheet

Datasheet Details

Part number	HS1-508ARH-T
Manufacturer	Intersil Corporation
File Size	72.55 KB
Description	Radiation Hardened 8 Channel CMOS Analog Multiplexer with Overvoltage Protection
Datasheet	HS1-508ARH-T Datasheet

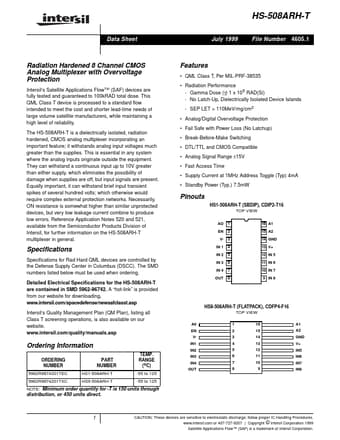

Additional preview pages of the HS1-508ARH-T datasheet.

📁 Similar Datasheet

HS1-82C37ARH-8 - Radiation Hardened CMOS High Performance Programmable DMA Controller (Harris Corporation)
HS1-82C37ARH-Q - Radiation Hardened CMOS High Performance Programmable DMA Controller (Harris Corporation)
HS1-82C37ARH-Sample - Radiation Hardened CMOS High Performance Programmable DMA Controller (Harris Corporation)
HS10 - Feed Sensor (Hog Slat)
HS100 - Crystal Clock Oscillators (NEL)
HS1010E - N-Channel MOSFET (Chengqi Semiconductor)
HS102M - Ceramic Capacitors (CDE)
HS103DR - DIN Rail Mount (Crydom)
HS103DR-D2490 - DIN Rail Mount (Crydom)
HS103DR-D53TP25D - DIN Rail Mount (Crydom)

Other Datasheets by Intersil Corporation

HS1-508ARH-8 - Radiation Hardened 8 Channel CMOS Analog Multiplexer with Overvoltage Protection
HS1-508ARH-Q - Radiation Hardened 8 Channel CMOS Analog Multiplexer with Overvoltage Protection
HS1-508ARH - Radiation Hardened 8 Channel CMOS Analog Multiplexer with Overvoltage Protection
HS1-508BRH - Radiation Hardened 8 Channel CMOS Analog Multiplexer with Overvoltage Protection
HS1-508BRH-8 - Radiation Hardened 8 Channel CMOS Analog Multiplexer with Overvoltage Protection
HS1-508BRH-Q - Radiation Hardened 8 Channel CMOS Analog Multiplexer with Overvoltage Protection
HS1-5104ARH - Radiation Hardened Low Noise Quad Operational Amplifier
HS1-5104ARH - Radiation Hardened Low Noise Quad Operational Amplifier

Full PDF Text Transcription

Click to expand full text

HS-508ARH-T Data Sheet July 1999 File Number 4605.1 Radiation Hardened 8 Channel CMOS Analog Multiplexer with Overvoltage Protection Intersil‘s Satellite Applications FlowTM (SAF) devices are fully tested and guaranteed to 100kRAD total dose. This QML Class T device is processed to a standard ﬂow intended to meet the cost and shorter lead-time needs of large volume satellite manufacturers, while maintaining a high level of reliability. The HS-508ARH-T is a dielectrically isolated, radiation hardened, CMOS analog multiplexer incorporating an important feature; it withstands analog input voltages much greater than the supplies. This is essential in any system where the analog inputs originate outside the equipment.
