HS1-508BRH-Q - Radiation Hardened 8 Channel CMOS Analog Multiplexer with Overvoltage Protection

Product Overview

Intersil Corporation

Part number	HS1-508BRH-Q
Manufacturer	Intersil Corporation
File Size	53.30 KB
Description	Radiation Hardened 8 Channel CMOS Analog Multiplexer with Overvoltage Protection
Datasheet	HS1-508BRH-Q Datasheet

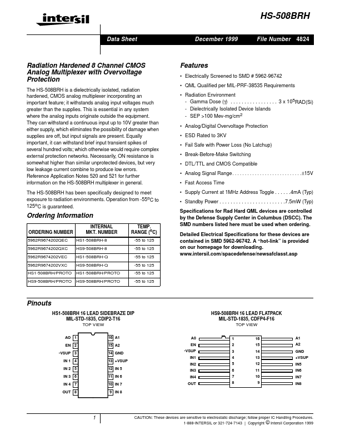

Additional preview pages of the HS1-508BRH-Q datasheet.

only.

Electrically Screened to SMD # 5962-96742.
QML Qualiﬁed per MIL-PRF-38535 Requirements.
Radiation Environment - Gamma Dose (γ).
. . 3 x 105RAD(Si) - Dielectrically Isolated Device Islands - SEP >100 Mev-mg/cm2.
Analog/Digital Overvoltage Protection.
ESD Rated to 3KV.
Fail Safe with Power Loss (No Latchup).
Break-Before-Make Switching.
DTL/TTL and CMOS Compatible.
Analog Signal Range.
