HS1-508BRH - Radiation Hardened 8 Channel CMOS Analog Multiplexer with Overvoltage Protection

Datasheet Summary

Description

only.

Intersil Corporation reserves the right to make changes in circuit design and/or specifications at any time without notice.

Accordingly, the reader is cautioned to verify that data sheets are current before placing orders.

Features

Electrically Screened to SMD # 5962-96742.
QML Qualiﬁed per MIL-PRF-38535 Requirements.
Radiation Environment - Gamma Dose (γ).
. . 3 x 105RAD(Si) - Dielectrically Isolated Device Islands - SEP >100 Mev-mg/cm2.
Analog/Digital Overvoltage Protection.
ESD Rated to 3KV.
Fail Safe with Power Loss (No Latchup).
Break-Before-Make Switching.
DTL/TTL and CMOS Compatible.
Analog Signal Range.

Intersil Corporation

📥 Download Datasheet

Datasheet Details

Part number	HS1-508BRH
Manufacturer	Intersil Corporation
File Size	53.30 KB
Description	Radiation Hardened 8 Channel CMOS Analog Multiplexer with Overvoltage Protection
Datasheet	HS1-508BRH Datasheet

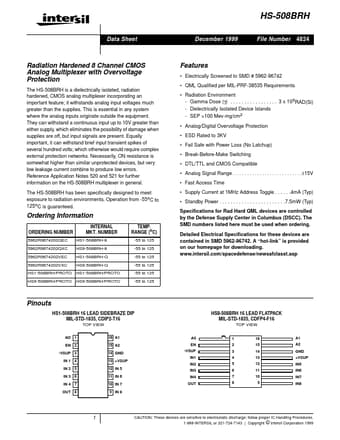

Additional preview pages of the HS1-508BRH datasheet.

📁 Similar Datasheet

HS1-82C37ARH-8 - Radiation Hardened CMOS High Performance Programmable DMA Controller (Harris Corporation)
HS1-82C37ARH-Q - Radiation Hardened CMOS High Performance Programmable DMA Controller (Harris Corporation)
HS1-82C37ARH-Sample - Radiation Hardened CMOS High Performance Programmable DMA Controller (Harris Corporation)
HS10 - Feed Sensor (Hog Slat)
HS100 - Crystal Clock Oscillators (NEL)
HS1010E - N-Channel MOSFET (Chengqi Semiconductor)
HS102M - Ceramic Capacitors (CDE)
HS103DR - DIN Rail Mount (Crydom)
HS103DR-D2490 - DIN Rail Mount (Crydom)
HS103DR-D53TP25D - DIN Rail Mount (Crydom)

Other Datasheets by Intersil Corporation

HS1-508BRH-8 - Radiation Hardened 8 Channel CMOS Analog Multiplexer with Overvoltage Protection
HS1-508BRH-Q - Radiation Hardened 8 Channel CMOS Analog Multiplexer with Overvoltage Protection
HS1-508ARH - Radiation Hardened 8 Channel CMOS Analog Multiplexer with Overvoltage Protection
HS1-508ARH-8 - Radiation Hardened 8 Channel CMOS Analog Multiplexer with Overvoltage Protection
HS1-508ARH-Q - Radiation Hardened 8 Channel CMOS Analog Multiplexer with Overvoltage Protection
HS1-508ARH-T - Radiation Hardened 8 Channel CMOS Analog Multiplexer with Overvoltage Protection
HS1-5104ARH - Radiation Hardened Low Noise Quad Operational Amplifier
HS1-5104ARH - Radiation Hardened Low Noise Quad Operational Amplifier

Full PDF Text Transcription

Click to expand full text

HS-508BRH Data Sheet December 1999 File Number 4824 Radiation Hardened 8 Channel CMOS Analog Multiplexer with Overvoltage Protection The HS-508BRH is a dielectrically isolated, radiation hardened, CMOS analog multiplexer incorporating an important feature; it withstands analog input voltages much greater than the supplies. This is essential in any system where the analog inputs originate outside the equipment. They can withstand a continuous input up to 10V greater than either supply, which eliminates the possibility of damage when supplies are off, but input signals are present. Equally important, it can withstand brief input transient spikes of several hundred volts; which otherwise would require complex external protection networks.
