IS-1715ARH Radiation Hardened Complementary Switch FET Driver

Datasheet IS-1715ARH, IS-1715AEH Radiation Hardened Complementary Switch FET Drivers The radiation hardened IS-1715ARH and IS-1715AEH are high speed, high current, complementary power FET drivers designed for use in synchronous rectification circuits. Soft switching transitions for the two output waveforms can be managed by setting the independently programmable delays. Alternatively, the delay pins can be configured for zero-voltage sensing to allow for precise switching control. The IS-1715A.

IS-1715ARH Features

* Electrically screened to SMD #5962-00521

* QML qualified per MIL-PRF-38535 requirements

* Radiation environment ○ Gamma dose 3x105rad(Si) ○ Latch-up immune

* PWR output current (source and sink): 3A (peak)

* AUX output current (source and sink): 3A (peak)

IS-1715ARH Datasheet (333.03 KB)

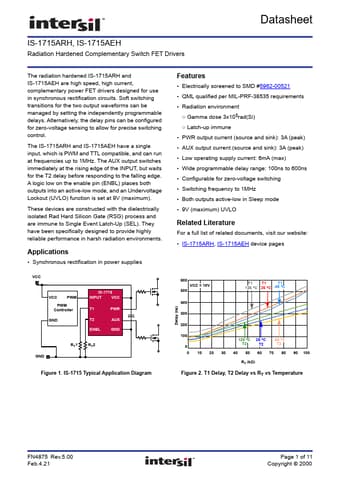

Preview of IS-1715ARH PDF
IS-1715ARH Datasheet Preview Page 2 IS-1715ARH Datasheet Preview Page 3

Datasheet Details

Part number:

IS-1715ARH

Manufacturer:

Intersil Corporation

File Size:

333.03 KB

Description:

Radiation hardened complementary switch fet driver.
