IS-1715AEH Radiation Hardened Complementary Switch FET Driver

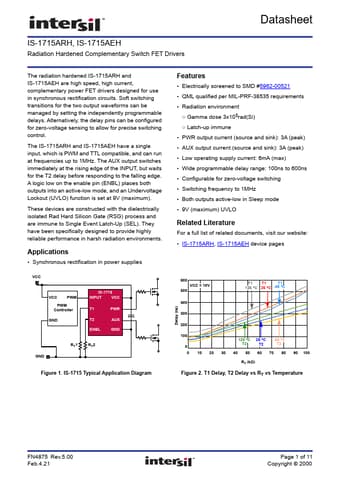

Datasheet IS-1715ARH, IS-1715AEH Radiation Hardened Complementary Switch FET Drivers The radiation hardened IS-1715ARH and IS-1715AEH are high speed, high current, complementary power FET drivers designed for use in synchronous rectification circuits. Soft switching transitions for the two output waveforms can be managed by setting the independently programmable delays. Alternatively, the delay pins can be configured for zero-voltage sensing to allow for precise switching control. The IS-1715A.

IS-1715AEH Features

* Electrically screened to SMD #5962-00521

* QML qualified per MIL-PRF-38535 requirements

* Radiation environment ○ Gamma dose 3x105rad(Si) ○ Latch-up immune

* PWR output current (source and sink): 3A (peak)

* AUX output current (source and sink): 3A (peak)

IS-1715ARH_IntersilCorporation.pdf

IS-1715AEH Datasheet Preview — This datasheet PDF includes multiple part numbers: IS-1715AEH, IS-1715ARH. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IS-1715AEH, IS-1715ARH

Manufacturer:

Intersil

File Size:

333.03 KB

Description:

Radiation hardened complementary switch fet driver.

Note:

This datasheet PDF includes multiple part numbers: IS-1715AEH, IS-1715ARH.
Please refer to the document for exact specifications by model.
